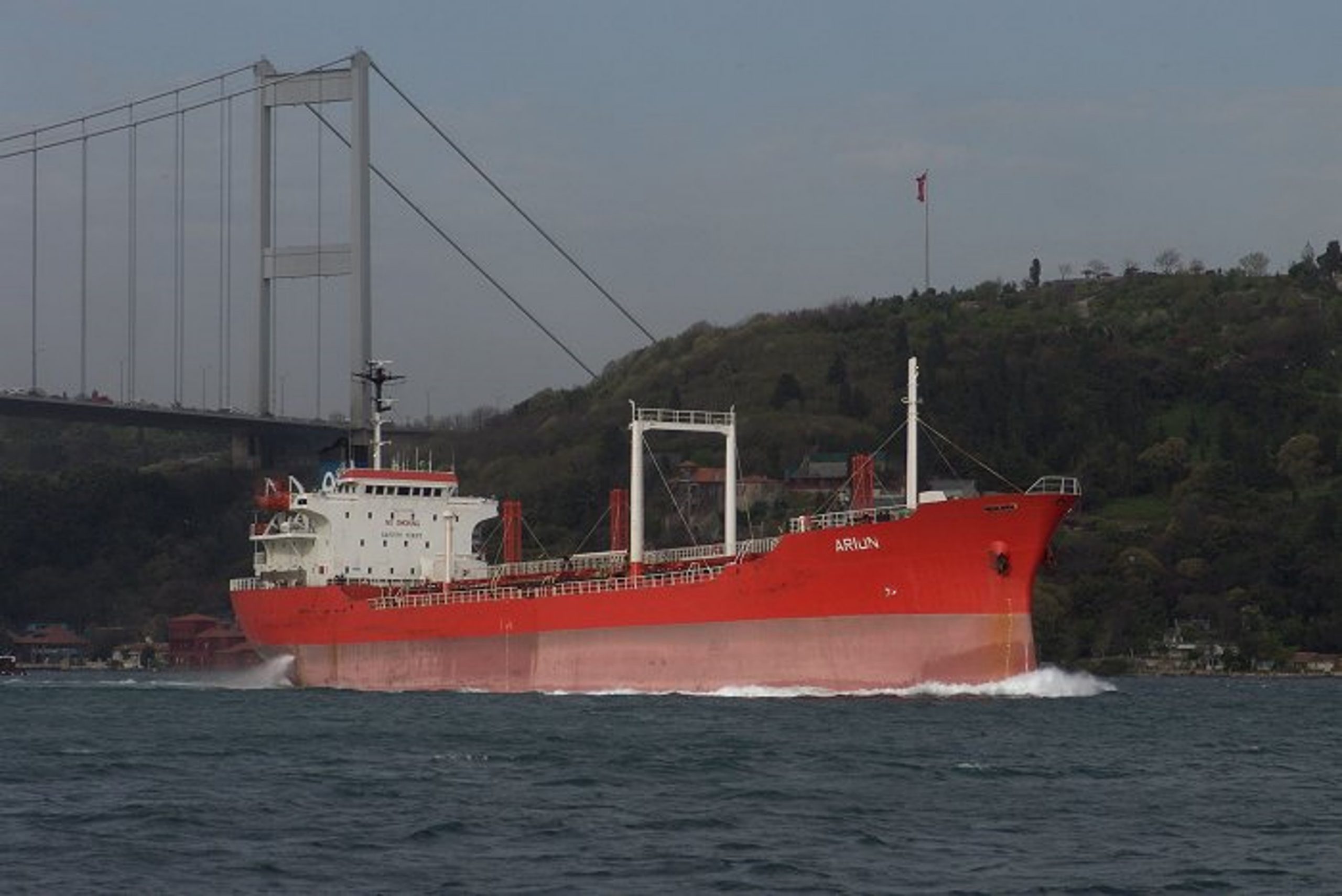

ARION I DETAILS
Vessel Details |
| Name | M/T Arion I |
| Owners | Legend S.A. since 10-1997 |
| Managers/ Operators | Ionia Management S.A. |
| Type | Oil& Chemical IMO II& III |
| Flag | Bahamas |
| Built | 1980 Japan |
| Call Sign | C6I53 |
| Class | Lloyd’s |
| DWT | 11.867 |
| GRT | 6.482 |
| NRT | 3.947 |
| LOA | 124m |
| Beam | 18.30m |
| Draft | 8.73m |
| LWT | 3.123mts |
Main Features |
| Main Engines | Akasaka 6 UEC 52/ 105 D, RPM 165, BHP 6200 |
| Generators | 3 x 120 KW |
| Cargo Tanks | 15 Tanks + 2 Slop |
| Cargo Pumps | Hanshin Gear Pumps, diesel engine driven 3×300 cbm/hr plus 2×500 cbm/hr |
| Derrick SWL | SWL 5 tns |
| Speed | 12 Knots |
Cargo Tank Capacity 98% Excluding Slots |
| Port Side | Center | Starboard Side | |
| No.1 | 462 | 1.060 | 462 |
| No.2 | 610 | 2.025 | 610 |
| No.3 | 606 | 1.995 | 606 |
| No.4 | 605 | 1.997 | 605 |
| No.5 | 356 | 1153 | 96 |
| Total | 2639 | 8.230 | 2379 |
| 13248 | |||
| Cargo Tank Capacity 100% | |||
| 13,280m3 | |||
Special Features |
| Stainless Steel heating Coils | |
| Double Bottom | |
| SBT Mode | |
| Phenolic epoxy Coated ( Sigma Phenguard) | |
| Green Tanker : M/T Arion is included in the 1997 Green Tanker Guide & Directory published by Lloyd’s List |
Speed & Consumption Tanker |
| Ladden 11.0 knots on 13 mts IFO 180+ 2.0 mts Gasoil | |
| Ballast 11.0 knots on 12 mts IFO 180+ 2.0 mts Gasoil | |
| Ladden 10.0 knots on 12 mts IFO 180+ 2.0 mts Gasoil | |
| Idle 2 mts IFO 180 +2.0 mts Gasoil | |
| When Discharging 2 mts IFO 180 (1 Pump) | |
| When Heating 6 mts IFO 180 |
Segregation |
| Line 1 (1,2,3 – P) | 1,678 cbm |
| Line 2 (1,2,3 -S) | 1,678 cbm |
| Line 3 (2,4 C) | 4,022 cbm |
| Line 4 (1,3,5 -C) | 4,253 cbm |
| Line 5 (4,5, Slop P&S | 2,114 cbm |
